Specification parameters
| Type | BL-TP-30-5E Parameter |
| Applicable Wire Dia. | width Φ:2.0-5.0mm thickness Φ:5.0-30mm |
| Number of control Axis | 12 Axis |
| Total power | 25.7KW |
| Crawler feeding | 1PC |
| Power of wire feeding motor | 4.5KW |
| Power Of wire turning Motor | 2.7KW |
| Servo shear motor motor | 1.0KW |
| Power Of Arm Motor | 2.0KW*8 |
| Power Of Curl Motor | 1.5KW |
| Angle accuracy | 90°±0.2° |
| Input Power | 380V/50Hz/3Ph |
| Weight | 3800KG |
| Maximum load weight of automatic wire feeder: | 1000KG |
| Machine Size(L*W*H) | 2800*2100*2000mm |
| Site occupation: | length 6800mm * width 2500mm |
Characteristic description
1. Adopting Yaqi computer control system and imported servo motor.
2. The equipment comes with a preheating device, which can bend without breaking the skin.
3. When wireless, disconnected, or wound, there is an automatic shutdown alarm function to increase the safety performance of the equipment (the equipment adopts a vertical wire rack).
4. The equipment comes with punching (to solve the problem of punching at both ends) and edge cutting function (to customize the mold according to the product).
5. According to product requirements, functions such as stamping, robotic arm, chamfering, grooving, sawing, etc. can be added.

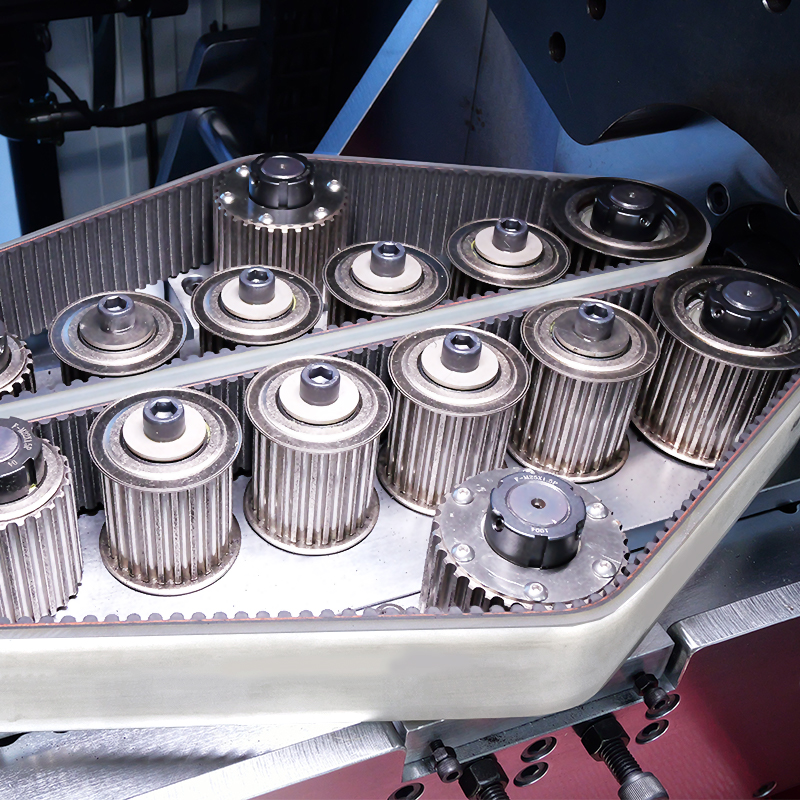

6. The wire delivery box adopts four sets of synchronous wire delivery to ensure wire delivery accuracy and stability.
7. This equipment is a device specifically designed by our company for automatic bending and forming of copper and aluminum bars. It is suitable for the production of new energy vehicle copper and aluminum bars, bus bars, electrical box copper and aluminum bars, enameled wire bundle wires, bare bars, battery bars, power battery modules and PACK, power installation and other industries.
