Specification parameters

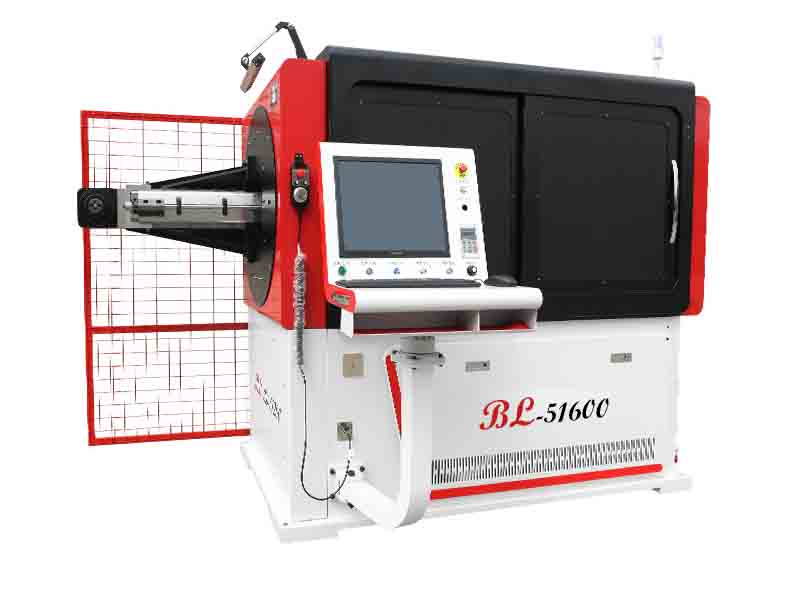

| Type | BL-3D-5160Parameter | |
| Applicable Wire Dia. | Soft material Φ:8.0-16.0mm Hard material Φ:8.0-12.0mm | |
| Bending stroke | 800mm | |
| Number of control Axis | 5 Axis | |
| Total power | 24KW | |
| Power Of Roating arm Motor | 5.5KW | |
| Power of wire feeding motor | 11KW | |
| Folding motor power | 4.5KW | |
| Lifting motor power | 1.5KW | |
| Power Of wire cutting Motor | 1.5KW | |
| Internal rotation motor power | / | |
| Maximum wire feeding speed | 80M／min | |
| Wire feeding accuracy | 300mm±0.1mm | |
| Angle accuracy | 90°±0.2° | |
| Input Power | 380V/50Hz/3Ph | |
| Weight | 5800kg | |
| Machine Size(L*W*H) | 3800×2200×2000mm | |

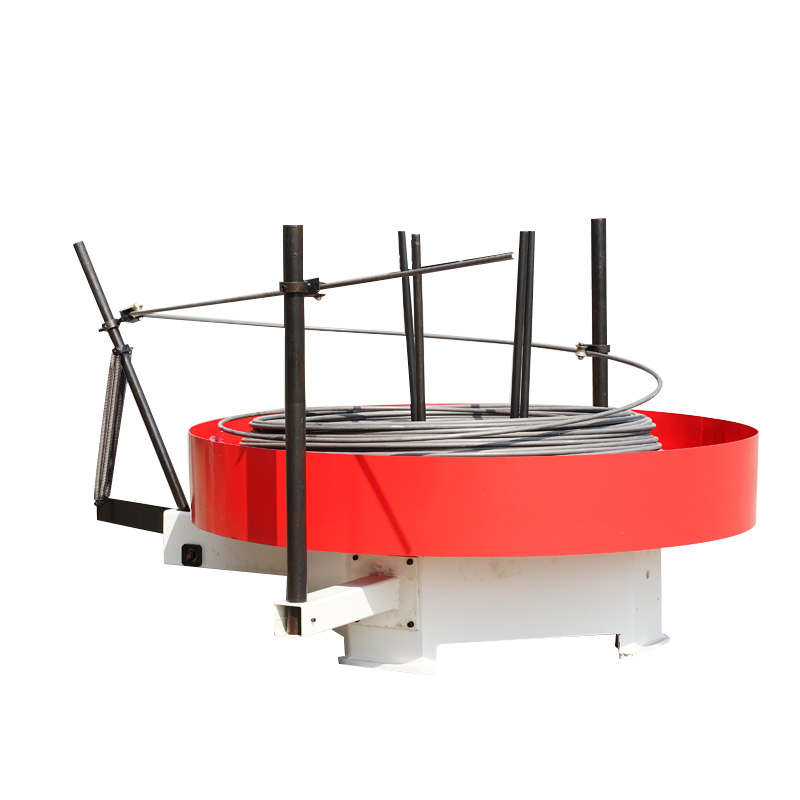

| Automatic feeder | Maximum load Weight: | 2000KG |
| Diameter of Round Tray | φ2000mm | |
| Input Power | 2.2KW | |
| Weight | 900Kg | |
| Size (L*W*H) | 2400*2400*1600mm | |
Characteristic description
The large diameter rotary bending and forming machine is a specialized equipment used for bending and forming large diameter pipes. It has various advantages, making it widely used in multiple industries. The following are some main advantages of a large wire diameter rotary bending forming machine:
High precision and repeatability: These machines typically have high-precision CNC systems that can achieve precise bending and forming, ensuring that the finished product meets design requirements and reduces waste.
Versatility: Large wire diameter rotary bending forming machines are usually equipped with various bending tools and molds, which can achieve bending operations of different shapes and angles, meeting diverse engineering needs.
High efficiency: This type of machine usually has fast bending speed and automation functions, which can quickly complete bending tasks and improve production efficiency.
Flexibility: This type of machine usually has a certain degree of flexibility and can adapt to different specifications, sizes, and shapes of pipes, providing customized processing solutions.
Saving labor costs: The automation level of the large diameter rotary bending forming machine is high, reducing labor demand, improving production efficiency, and reducing labor costs.
Overall, the large diameter rotary bending and forming machine has various advantages, making it an important tool for processing large diameter pipes and workpieces, widely used in construction, manufacturing, engineering construction, steel structure manufacturing, and other fields

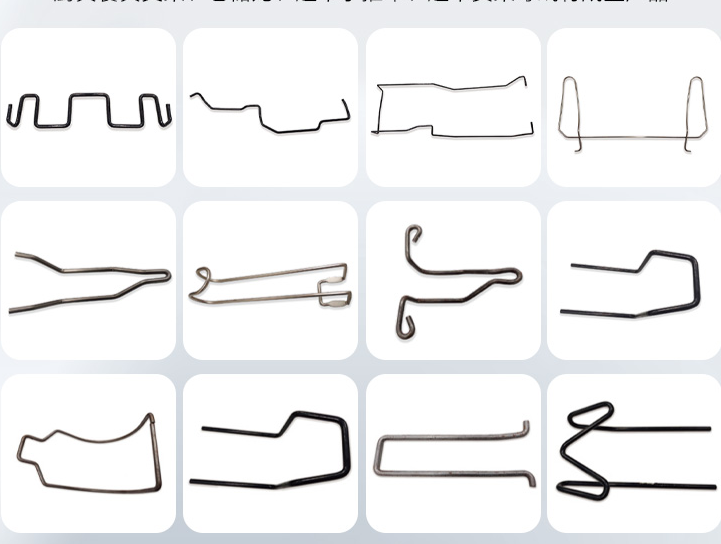

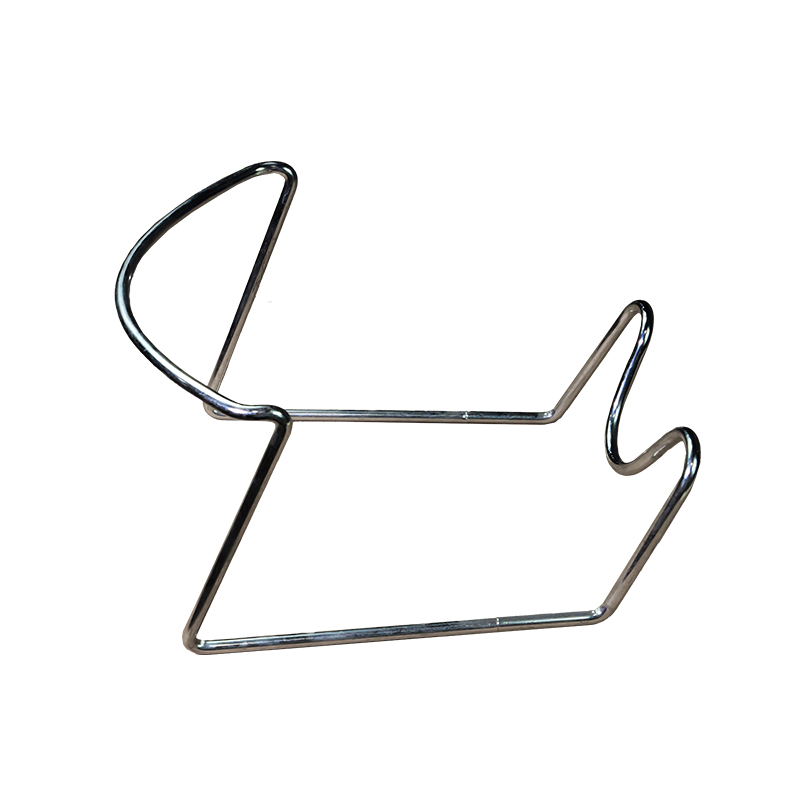

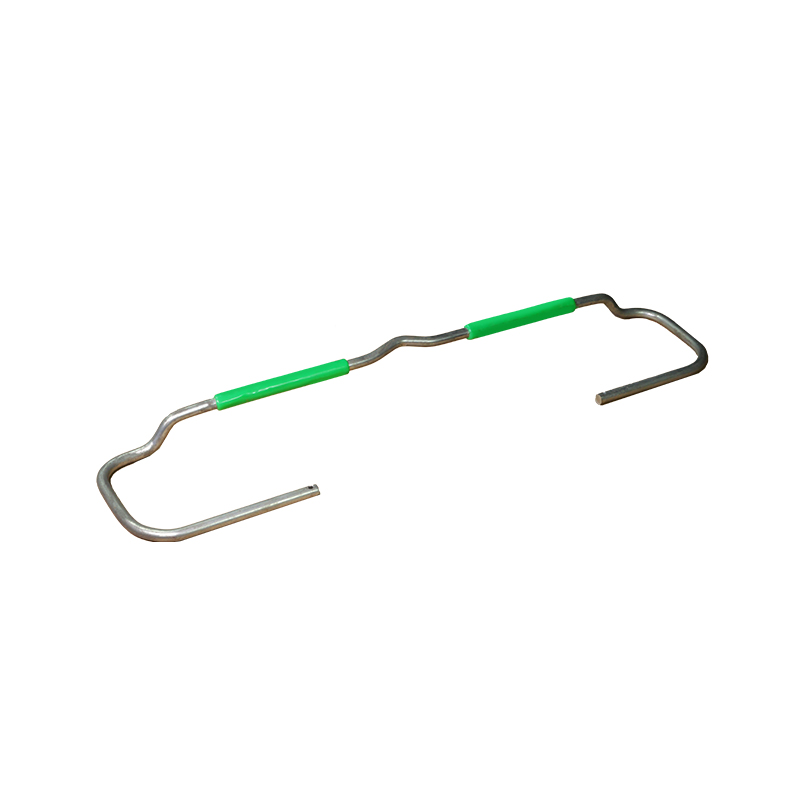

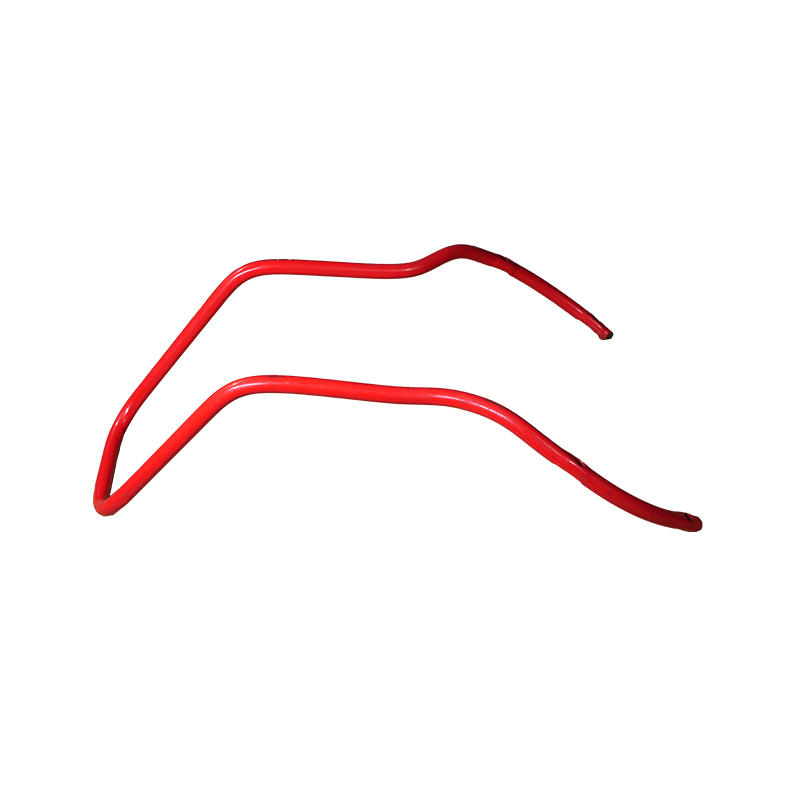

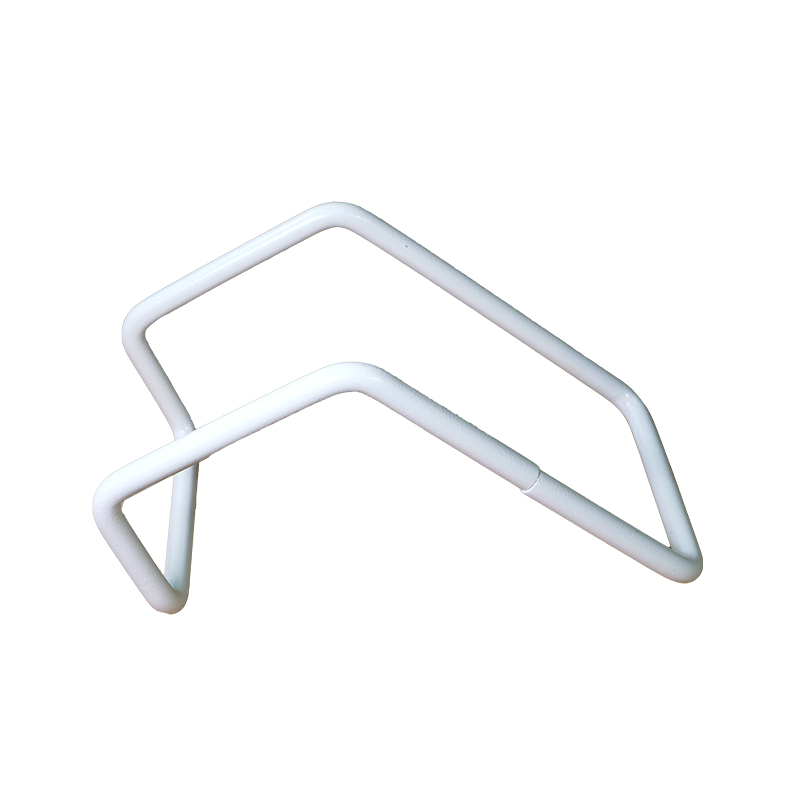

Sample image display
