Specification parameters
| Type | BL-2T-15600 Parameter |
| Applicable Wire Dia. | Soft material Φ:3.0-6.0mm Hard material Φ:3.0-4.5mm |
| No. of Axis | 15 Axis |
| total power | 28.5KW |
| Feeding wire power | 2.9KW |
| Clamping wire moving power | 2.0KW |
| Rotating arm power | 1.5KW*2 |
| Rotating boom power | 2.9KW*2 |
| Fold angle moving (left/right) | 2.9KW*2 |
| Fold angle lift (left/right) | 1.0KW*2 |
| Inner turning angle (left/right) | 1.5KW*2 |
| External turning angle (left/right) | 1.5KW*2 |
| Cutter power | 1.0KW |
| Input Power | 3AC 380V/50HZ |
| Weight of Machine | 5500KG |
| Size (L*W*H) | 5000mm*1500mm *1600mm |
| Maximum load weight of automatic wire feeder: | 1000KG |
Characteristic description
1. The use of powerful 16-axis industrial computer control system and imported servo motor, the perfect combination of intelligence and strength, to achieve incisive and incisive.
2. Rotating straightening mechanism is our own R & D design, aiming at the domestic wire characteristics design, more to meet the needs of the domestic market, to solve the problem of wire straightening difficult.
3. Through the traction of the screw, the guide guide of the guide rail makes the forming head come and go freely to ensure the angle distance of the product and reduce the noise in the occurrence.
4. Intelligent material rack module, automatic shutdown when entangled wire, automatic acceleration function of wire frame, which makes the production easier and more efficient.
Sample image display

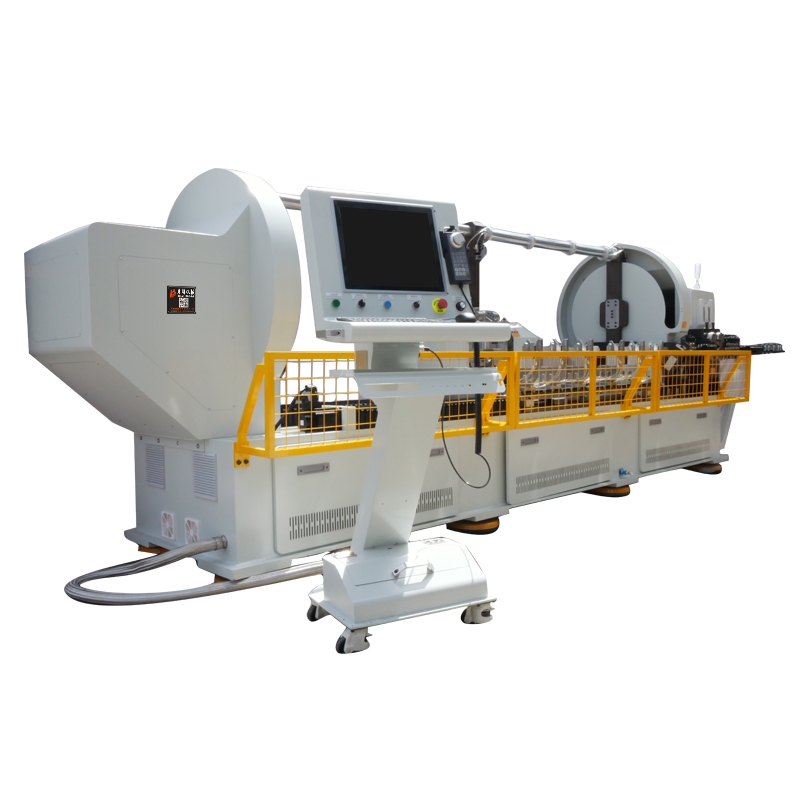

BL-3D-15600 double headed CNC car seat foam steel wire bending forming machine is mainly used in the auto parts industry, including car seat wire, car seat parts molding; pet cage parts; kitchen hardware parts; garden tool parts, electronic product molding, toys All kinds of high-precision parts molding, electrical accessories molding, sports equipment accessories molding, stationery accessories molding, instrument accessories molding, instrument accessories molding, hair accessories molding, kitchen and bathroom pendant accessories molding, handicraft molding, supermarket shelf accessories molding, etc. The field of metal wire forming accessories.
